Description

Dosing Pump Built in PH Controller – TPR Series SEKO

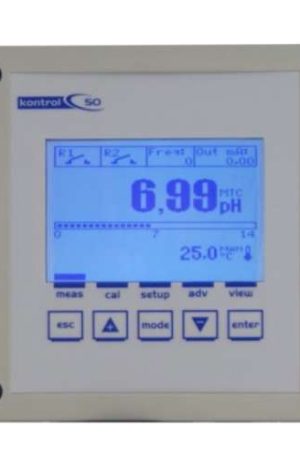

Digital interface dosing pump with proportional dosing for constant or proportional dosing and with a built-in pH/Redox meter. It also features a PT100 probe input for thermal compensation, a repetition alarm relay and an On-Off input for remote control.

Tekna TPR Series is equipped with a manually priming pump for the start-up. The pump is furnished with a complete standard installation kit, which includes: a PVDF foot filter and injection valve, PVC suction tube, PE delivery tube.

Dosing Pump Built in PH Controller - TPR Series SEKO

Dosing Pump Built in PH Controller – TPR Series SEKO

Dosing Pump Built in PH Controller - TPR Series SEKO

Features

  • Flow rates: from 0.4 to 110 l/h
  • Max back pressure: up to 20 bar
  • Power supply: 100 – 240Vac – 50/60 Hz
  • Stroke rate: from 120 to 300 strokes/minute
  • Pump head: PVDF
  • Diaphragm: PTFE
  • External Enclosure: PP reinforced with fiber glass protection degree IP65
  • Manually priming valve
