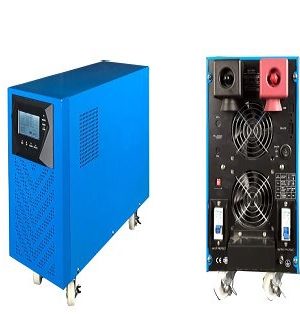

Solar Inverters

Kotohira System is one of the oldest industrial grade power supply manufacturers in Japan. ENGINEERIC is the distributor of Solar Inverters and UPS  in Pakistan. Deal in best  Quality Solar Inverters and UPS in Pakistan. Solar Inverters and UPS are made by JAPAN.Now Best Solar inverters and UPS  available in Pakistan. Distributor of Industrial Solar inverters and UPS in Pakistan.

1.Why Purchase from ENGINEERIC?

We are the distributor of solar inverters in Pakistan because we deal in the best quality solar inverters, therefore, we can provide you solar inverters in best price in Pakistan.

Feature of Solar Inverters:
  • Tower Type or Wall-Mount Type can be chosen.
  • Independent Ventilation for cooling system to make system more stable.
  • Optional for MPPT or PWM solar controller
  • ECO Mode Available to save more energy
  • Output Short-Circuit Protection
  • Generator Capability
  • Highly Flexible Customization
Model
1KVA
1.5KVA
2KVA
3KVA
4KVA
5KVA
6KVA
8KVA
10KVA
Input Voltage 220Vac/ 110Vac (Customized)
Input Voltage Range 220V: 154-264Vac±3V (Inverter Mode) ; 185-264VAC±3V (UPS Mode)
110V: 77-132Vac±3V (Inverter Mode); 92-132Vac±3V(UPS Mode)
Input Frequency 50/60Hz±5%
Output Power 800W 1200W 1600W 2400W 3200W 4000W 4800W 6400W 8000W
Output Voltage (AC Mode) Tracking and Following AC utility Input Power Range
Output Frequency (AC Mode) Tracking and Following AC utility Input Power Range
Output Voltage (DC Mode) 220VAC±10% or (110VAC±10%)
Output Frequency (DC Mode) 50HZ or 60HZ±1%
Output Waveform Pure Sine Wave
Battery Type LEAD,SLA, OP-LE
Battery Voltage 12Vdc 12Vdc 24Vdc 24Vdc 24 Vdc 48 Vdc 48Vdc 48 Vdc 48Vdc
Charging Voltage 13.75Vdc 13.75Vdc 27V dc 27 Vdc 27 Vdc 54Vdc 54Vdc 54 Vdc 54 Vdc
MPPT Solar Input Voltage Range 15-33Vdc 15-33 Vdc 30-66V dc 30-66 Vdc 30-66Vdc 60VDC-150V 60 -VDC-150V 60-VDC-150V 60VDC-150V
(Or PWM Solar Charger)
Solar  Charge  Maximum  PV 38VDC 38 VDC 75 VDC 75V dC 75VdC 150 VdC 150V dC 150 VDC 150 VDC
Display open circuit voltage (60V PWM) (60-V PWM) (60-V PWM) (100V PWM) (100- V PWM) (100- V PWM) (100V PWM)
Solar Charge Maximum charging current 50 A 50A 50 A 50A 50Amp 50Amp 50 amp 50 amp 5oA
AC Charger Maximum Charging current 25A 30A 28A 40A 65A 30A 40A 50A 65A
Battery Charging Input Voltage 140-280VAC
Range
Transfer Time ≤10ms
Crest Ratio 3:01
Protection Overload/over-current/short circuit/over temperature
Display LCD display: AC Voltage,AC Frequency,PV Voltage,PV Current,Output Voltage,Output Frequency,Battery Voltage,Load Information, etc.
Alarm BAT Low, Overload, Fault
Generator Compatibility Available (Auto-Start Accessories)
Working Temperature -10C ,-40C

Storage Temperature
Humidity <95%,without condensation
Noise ≤55db
